DOYMA PROJECTS

Demanding buildings such as power plants, large industrial plants, reservoirs or airports, often require highly specialized custom-made constructions. They place high demands on the fact that building penetrations for cables and pipe work need to be permanently sealed. Large pipe diameters or special thermal, chemical or physical requirements mean that bespoke sealing solutions are required. DOYMA have the expertise and an experience of over 50 years to develop and produce the best solution for your building or project. State-of the-art design and manufacturing methods as well as professional simulation methods will help to ensure safety when using DOYMA special constructions. All this with a 25-year warranty. Being the sole UK distributors for DOYMA products, please contact Service Sealing Solutions Ltd, to tap into this immense array of resources.


VITAL ENERGI UTILITIES LTD

PRODUCT: C40 Curaflex Doyma Gaskets

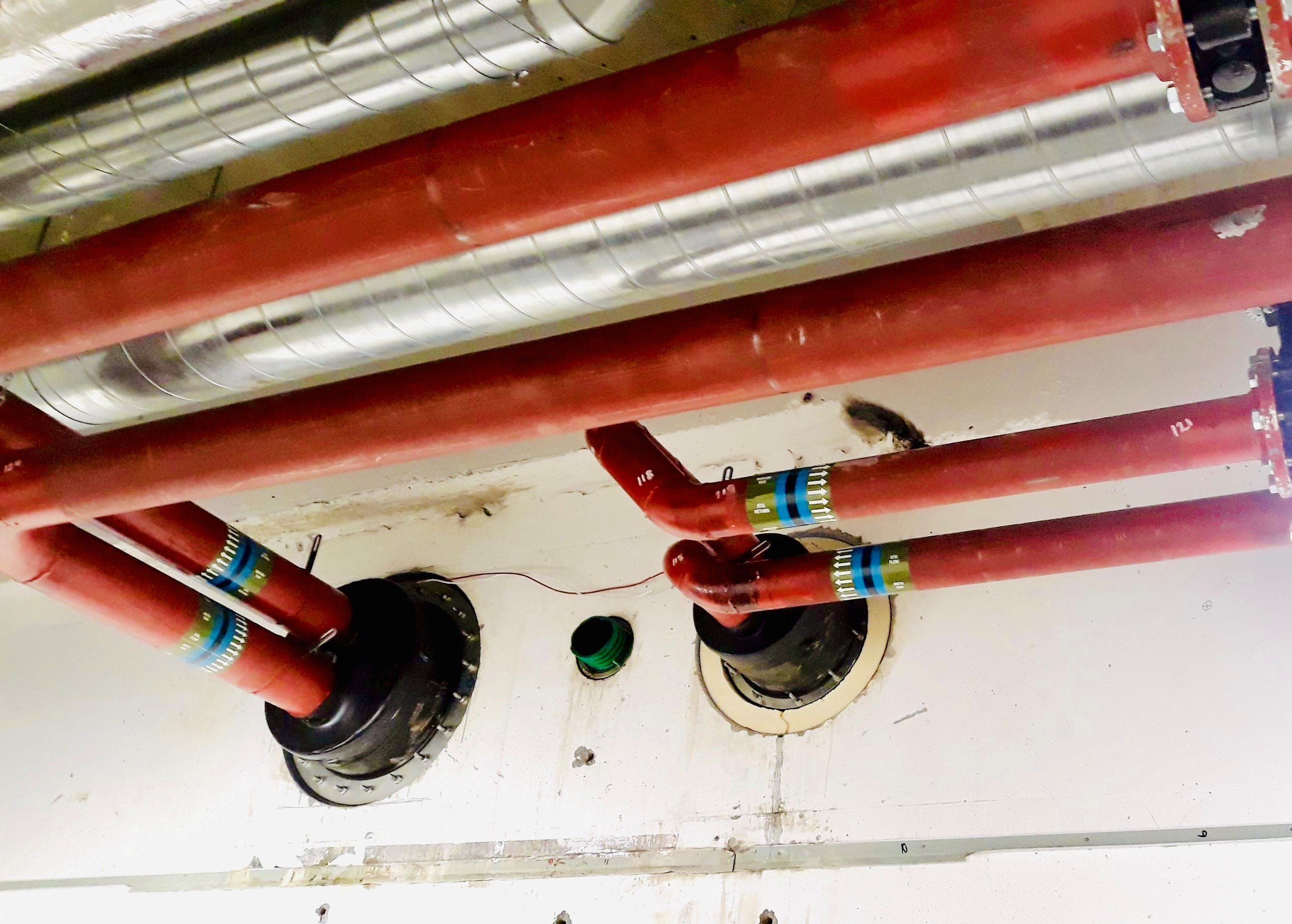

PRODUCT DESCRIPTION: The UK leading installers of pre-insulated district heating systems, Vital Energi Utilities Ltd, use our C40 Curaflex Doyma Gaskets in order to provide a water proof barrier seal for all below ground entries. The specialist installations are subject to slight movement through expansion as they system heats up, so the introduction of the Doyma Gasket allows them to seal both to the opening the building façade as well as the HDPE outer-casing, accepting the axial movement that may occur during the operation. Vital Energi’s managing director, Ashley Walsh, noted ‘This provides our installation with an excellent termination. It provides confidence both to ourselves and our clientele, that we’ll leave the fully installed works sealed from any moisture ingress, whilst providing a product that has the flexibility and capability to work alongside our very complex pre-fabricatedproducts’.

MATERIALS: HDPE outer-casing

Vital Energi Utilities Ltd

RENOVATION/CONVERSION OF A LISTED RESIDENTIAL BUILDING

PRODUCT: Curaflex® 7006/T/S Plate, constructed and manufactured to preserve the existing structure despite extensive renovation of the pipes

PRODUCT DESCRIPTION: Split plate for sealing on the surface of the wall with fixed and loose flanges to maintaining the integrity of the existing tanking membranes. Retro-fit version for sealing already installed services against pressing water

SERVICES: a 250mm duct

MATERIALS: Triple corrosion protected mild steel

ADDITIONAL PRODUCTS: Curaflex® Quick in C gaskets for sealing the services already installed

Renovation/conversion of a listed residential building

RENOVATION OF AN AIRPORT TOWER

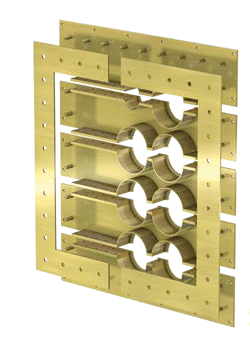

PRODUCT: Curaflex® 7006/M/T/S Plate, constructed and manufactured for the for sealing several services.

PRODUCT DESCRIPTION: A split plate for sealing on the face of the wall, with fixed and loose flanges to maintain integrity of plastic-modified bitumen coating waterproofing. Retro-fit version for sealing already installed services against pressing water

SERVICES: 7 x 200NB and 1 x 100NB

MATERIALS: Triple corrosion protected mild steel with sanded surface for added adhesion qualities.

ADDITIONAL PRODUCTS: Curaflex® Quick in C gaskets for sealing the services.

Renovation of an airport tower

REMODELLING AN OFFICE BUILDING

PRODUCT: Curaflex® 9000/M/S Steel Puddle Flange, constructed and manufactured for the sealing of several services

PRODUCT DESCRIPTION: Steel puddle flange with multiple spigots. For sealing services against pressing water

SERVICES: 12 x 80NB

MATERIALS: Triple corrosion protected mild steel

ADDITIONAL PRODUCTS: Curaflex® C Gaskets to seal services within the spigots of the puddle flange

Remodelling an office building

NEW COMPUTER ROOM

PRODUCT: Curaflex® 7006/M/S Plate to seal several power and data cables at an angle

PRODUCT DESCRIPTION: Sealing on the surface of the wall with fixed and loose flange, to maintain integrity of tanking membranes, sealing against pressing water

SERVICES: 4 x 400NB

MATERIALS: Triple corrosion protected mild steel

ADDITIONAL PRODUCTS: Curaflex® C gaskets C

New computer room

DISTRICT HEATING PIPES ENTERING AN OFFICE BLOCK

PRODUCT: Curaflex® 7006/M/S Plate to seal District heating pipes entering an office block

PRODUCT DESCRIPTION: Sealing on the surface of the wall with fixed and loose flanges to maintain the integrity of a tanking membrane. For sealing pre-insulated district heating pipes against pressing water

SERVICES: 2 x 200mm pre-insulated pipes

MATERIALS: Triple corrosion protected mild steel

ADDITIONAL PRODUCTS: Curaflex® C40 gaskets for sealing pre-insulated pipes

District heating pipes entering an office block
